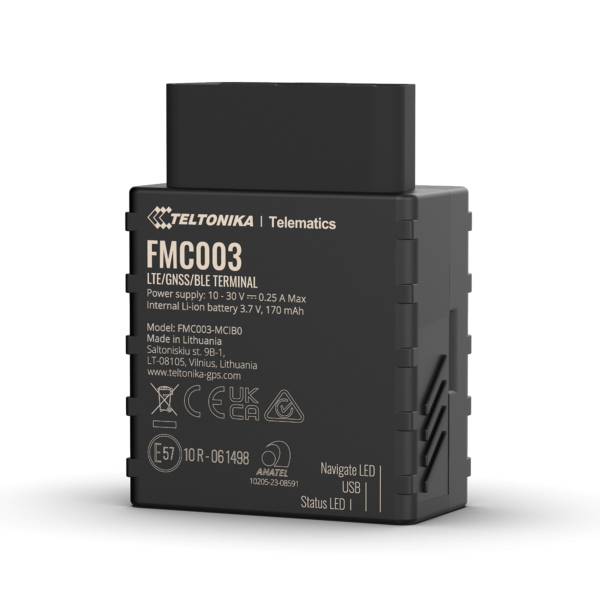

4G OBD Fleet Tracker With Fuel Monitoring – Plug & Play – FMC003

£ 80.40 inc. VAT (£ 67.00 exc. VAT)

Availability: In stock

Tracking Subscription *

Select a subscription option below. Flexible pay upfront options from less than £20 with everything included, there are no additional or unexpected costs –

OBD Port Extension Cable

Option to extend your OBD port and locate the device in a more convenient location

SKU: Vigi-fmbc03 Categories: , ,

Need help selecting the right device?

01206 804 834 01206 804 834 Email info@vigitech

Advanced Plug & Play Real-Time GPS Tracker

Plug and play device dedicated to OBD applications of next generation.

  • No installation – just plug into vehicle diagnostics port
  • Latest 4G connectivity for best global coverage
  • No hidden costs, no top-ups with our all inclusive tracking subscription
  • Ready to use out of the box
  • Track live from our web portal or mobile phone apps
  • Real-time tracking information for your fleet or personal vehicles
  • Receive data from your vehicle, including fuel level, engine status, fault codes
  • Engine run and idle hours counting
  • Online reports including trips with fuel used per trip, refuelling, daily summary and routes taken
  • Scheduled email reports detailing trips taken and driver behaviour

Alerting

Can be configured to send you immediate app notification, email or text message alerts when:

  • Engine started
  • Exits or enters pre-defined areas
  • Vehicle refuelled & by how much
  • Fuel level drops
  • Exceeds speed limits (Currently UK Roads Only)
  • Vehicle Crash
  • Device unplugged
  • Towed (moves without engine started)

No-Nonsense Subscription

  • No top-ups to worry about – we’ll send you an invoice when it’s due for renewal
  • Ready to use out of the box – every device is setup, paired to your account and tested before posting
  • 365 day history retention – look back at exactly where your vehicles were any time in the last year
  • Quick and easy reporting
  • Includes all alerting via SMS, Email and App Notifications
  • Simply select the length of your subscription and it will automatically renew until cancelled



By far one of our simplest Tracker to install, while still retaining the precision tracking qualities and features of the hard wired Teltonika trackers. This tracker is perfect for instant monitoring of the driving behaviour of your children or employees. Simply remove from the box and plug into the OBDII port and view on our online platform.

This is advanced OBDII Plug and Play tracker with GNSS, GSM and Bluetooth connectivity. It is perfectly suitable for light vehicle tracking in applications like courier delivery service, car rental & leasing, insurance telematics and many other where simple integration is a must. Also, it has additional feature – reading OBDII data from vehicles on-board computer. FMC003 device supports temperature/humidity sensors via Bluetooth.

As with all of the trackers we sell, you will need to purchase a tracking subscription, this comes pre-configured to send live realtime tracking information to our web based tracking platform. Please get in touch if you’d like a demo or have specific requirements you’d like to discuss.

The device can also be configured to read engine management data from the OBDII port, such as Fuel Level, Engine Speed (RPM), Engine fault codes and many other parameters.

MODULE
Name Teltonika TM2500, MeiG SLM320-E, MeiG SLM320-LA
Technology LTE(CaT1)/2G(GSM/GPRS)/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 channel
Tracking sensitivity -165 dBM
Accuracy < 2.5m CEP
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands GSM: B2/B3/B5/B8
4G bands SLM320-E: LTE FDD: B1/B3/B7/B8/B20/B28 LTE-TDD:B38/B40/B41 SLM320-LA: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28 LTE-TDD:B40
Data transfer LTE:LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL) LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL) GSM:GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support SMS (text/data)
POWER
Supply voltage range 10 – 30 V DC with overvoltage protection
Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Inateck Barcode Scanner, Universal BLE sensors support
OBD INTERFACE
Data K-Line, CAN bus data
Data reading Up to 32 vehicle onboard parameters, supported OBD protocols:
ISO 9141-2 (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
ISO 14230-4 KWP (fast init, 10.4 kbaud)
ISO 15765-4 CAN (11 bit ID, 250 kbaud)
ISO 15765-4 CAN (11 bit ID, 500 kbaud)
ISO 15765-4 CAN (29 bit ID, 250 kbaud)
ISO 15765-4 CAN (29 bit ID, 500 kbaud)
INTERFACE
Connection OBDII Socket
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Micro-SIM
Memory 128MB internal flash memory
PHYSICAL SPECIFICATION
Dimensions 67,2 x 49,6 x 25 mm (L x W x H)
Weight 63 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature +10 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
FEATURES
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, Excessive Idling detection, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, Debug
GPRS commands Configuration, Debug
Time Synchronization GPS, NITZ, NTP
Fuel monitoring OBD II
Ignition detection Accelerometer, External Power Voltage, Engine RPM

All-Inclusive subscription to our fully featured web based tracking and fleet management portal and mobile phone apps.

Key features include

  • Live, real time tracking – view all of your trackers from a single web page, plotted on a map.
  • Alerts – instant app notifications, email and SMS alerts. This allows for alerting in cases of driving behaviour like speeding, fuel and maintenance events, geo-fencing and many other types of alerts.
  • Reports – location history, trip, chart and summary reports. You can view data directly in the web or mobile app and also export and download an Excel file. History can also be projected on the map providing visual representation. Quick access drivers start and finish times for each day.
  • Scheduled reports by email detailing trips taken including driver behaviour and fuel usage.
  • Apps with push notifications for apple and android


The subscription includes a data sim card for use with our range of trackers and access to our secure tracking and alerting platform. These multi-network SIM cards are designed for IOT and Tracker use – optimised to give the best network access possible. The sim cards that we supply allow your tracker to work in over 150 countries across Europe and beyond.

Because our solution is developed in-house, if there’s functionality that isn’t in our system that you require, please get in touch and we will aim to accommodate your requirements.

You will be sent login details to the tracking platform as soon as your purchase is completed – your trackers will automatically be added. From here you can setup alerts and reports for all aspects of the tracking data.

Tracking Subscription Coverage

Our tracking subscription will provide GSM Network coverage for our trackers in the following countries:

Albania
Anguilla
Antigua And Barbuda
Argentina
Armenia
Australia
Austria
Bahrain
Barbados
Belgium
Bosnia And Herzegowina
Brunei Darussalam
Bulgaria
Cambodia
Cayman Island
Chile
China
Colombia
Congo, The Democratic Republic
Costa Rica
Croatia
Cyprus
Czech Republic
Denmark
Dominica
Dominican Republic
Ecuador
Egypt
El Salvador
Estonia
Faroe Islands
Finland
France
Georgia
Germany
Ghana
Gibraltar
Greece
Guatemala
Honduras
Hong Kong
Hungary
Iceland
India
Indonesia
Ireland
Israel
Italy
Jamaica
Japan
Jordan
Kazakhstan
Kenya
Korea, Republic Of
Kyrgyzstan
Latvia
Liechtenstein
Lithuania
Luxembourg
Macedonia, The Former Yugoslav Republic Of
Malaysia
Malta
Mexico
Moldova, Republic Of
Monaco
Mongolia
Montenegro
Morocco
Mozambique
Myanmar
Netherlands
New Zealand
Nicaragua
Norway
Panama
Papua New Guinea
Peru
Philippines
Poland
Portugal
Puerto Rico
Qatar
Reunion
Romania
Russian Federation
Saint Kitts And Nevis
Saint Lucia
Samoa
Saudi Arabia
Serbia
Singapore
Slovakia, Slovak Republic
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Taiwan
Tanzania, United Republic Of
Thailand
Turks And Caicos Islands
Ukraine
United Arab Emirates
United Kingdom
United States
Uruguay
Weight 180 g
Dimensions 20 × 15 × 4 cm
